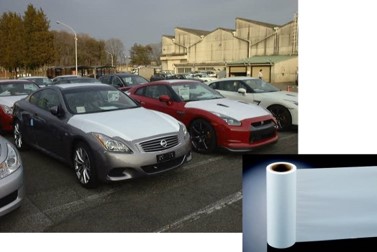

PGF (Paint Guard Film) for AUTO Outside
- The surface coating to protect damage from transportation and storage process for the automotive
- Certification for long-term use
- Easy to use
- Reliable Adhesive Technology, Environmentally friendly design
- Size
- Width : ~1800mm
- Length : 100 ~ 200M - Structure
| Item | Unit | VE series | Remarks | |
|---|---|---|---|---|
| Thickness | mm | 0.050 | ||
| Adhesion Strength | N/25mm | 5.6 | 1K (BCN) Plate | |
| Unwinding Force | N/25mm | 1.55 | ||
| Tensile Strength | MD | N/25mm | 40.0 | JIS Z 0237 |
| TD | N/25mm | 31.7 | ||
| Tensile Elongation | MD | % | 650 | |
| TD | % | 750 | ||
WGF (Wheel Guard Film) for AUTO Wheel
- Protection of the hub and disc surface from corrosion, scratches and other damage due to external factors.
- The stacked design does not require release paper and reduce waste.
- Easy to operate, improve work efficiency.

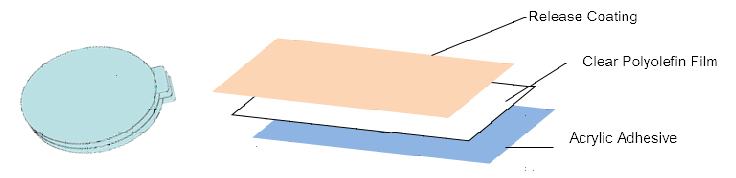

- Structure
| Item | Test Conditions | unit | WGF Series | |
|---|---|---|---|---|
| Thickness | - | mm | 0.065 | |
| Adhesion Strength | Temperature(23℃) | N/25mm | 5.8 | |
| Water Immersion Test | Soaking 40℃*240h | N/25mm | 5.5 | |
| Hot Test | 70℃*672h | N/25mm | 8.5 | |
| Humidity Test | 50℃*95%*240h | N/25mm | 7.0 | |
| Weathering Test | 300H | N/25mm | 8.5 | |

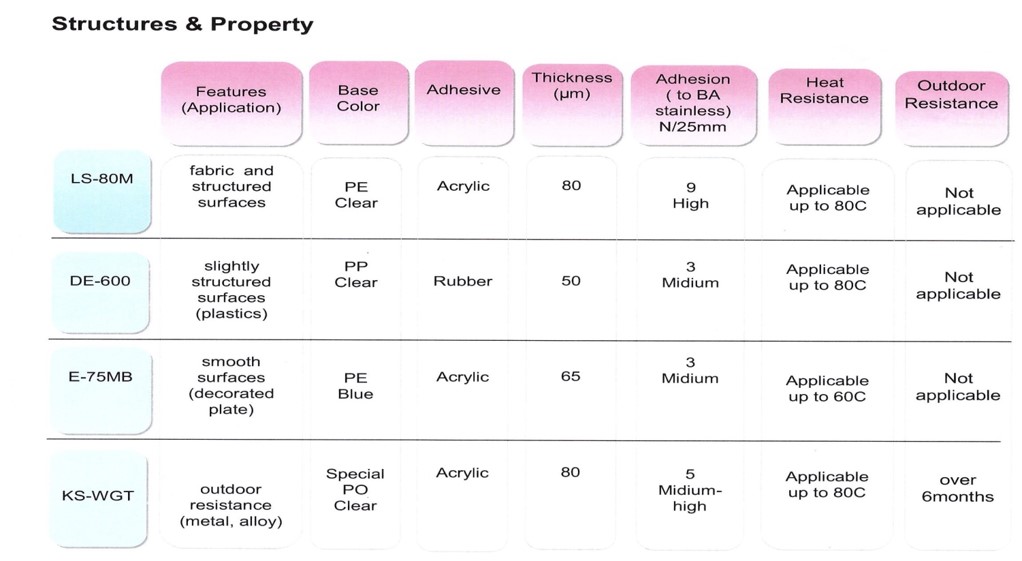

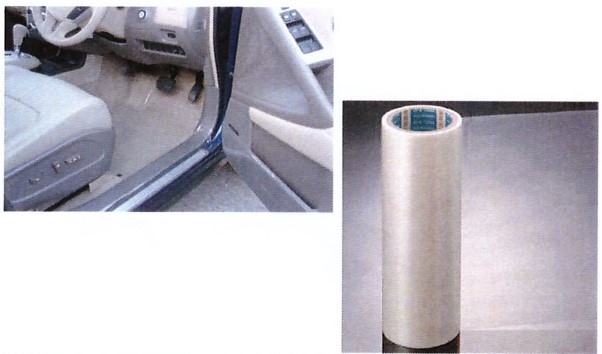

Interior Film for AUTO Inside
- 1.This Product offers a surface protective materials suitable for interior materials such as door trim, brail, information panel, shift bar, door steps, floor carpet and etc.
- It has a medium high Adhesive with tackiness to provide temporary protection for automotive interior parts; plastics, metal and fabric.
